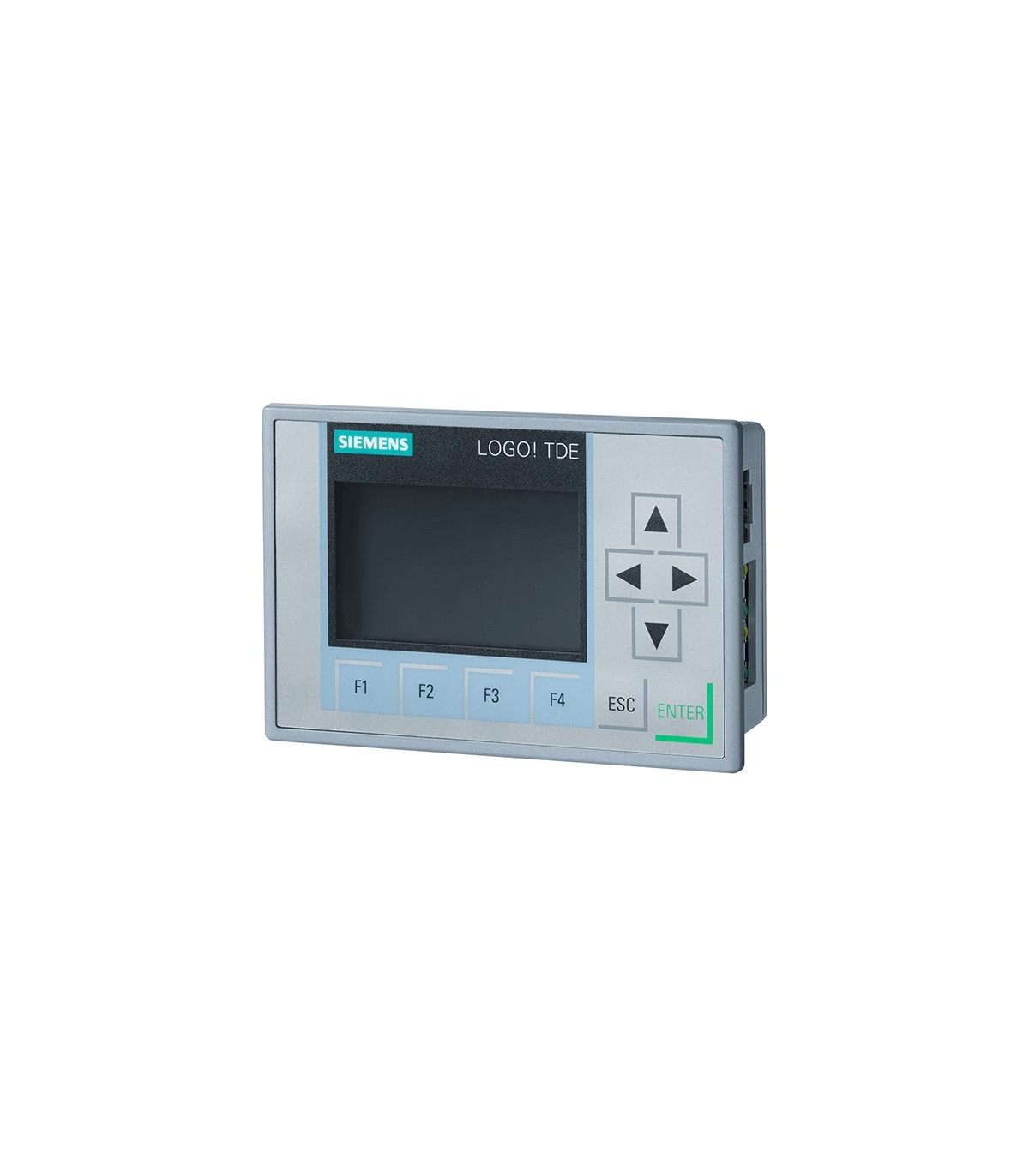

Siemens LOGO! TD Text Display (6ED1055-4MH08-0BA1)
Siemens LOGO! TD Text Display (6ED1055-4MH08-0BA1) is a compact operator interface for LOGO! 8 controllers, featuring a 6-line LED-backlit display, dual Ethernet ports, and IP65 front protection for industrial automation and building control systems.
The Siemens LOGO! TD Text Display (6ED1055-4MH08-0BA1) is an external text display unit designed for visualization and operator interaction with Siemens LOGO! 8 and higher logic modules. This device provides a simple and reliable human-machine interface for monitoring process states, messages, and system information in industrial and building automation systems.
The display features a 6-line FSTN screen with 20 characters per line and LED backlighting. It supports three background colors, allowing clear differentiation of system statuses, alarms, and operational messages. The integrated system keys enable basic navigation and interaction without requiring a full HMI panel.
The LOGO! TD is equipped with two Ethernet ports, enabling simple network integration and flexible installation within LOGO! automation architectures. It is powered via 12 V DC, 12/24 V DC, or 24 V AC, making it compatible with common LOGO! power supply configurations.
With a front protection rating of IP65, the text display is suitable for installation in industrial environments where dust and water splashes may be present. Its compact housing and direct mounting design allow easy integration into control panels and operator stations.
As a trusted supplier of Siemens automation solutions,
Bardia Control Systems
supplies original Siemens LOGO! accessories with technical support and fast delivery across the UAE. Additional compatible products are available in our
Siemens Automation Technology
range.
For independent technical background on PLC visualization and operator interfaces, refer to:
What Is a PLC and How Does It Work?
Technical Specifications
| Brand | Siemens |
| Product Type | Text Display / Operator Interface |
| Model | LOGO! TD |
| Part Number | 6ED1055-4MH08-0BA1 |
| Compatibility | LOGO! 8 and higher |
| Display Type | FSTN |
| Number of Lines | 6 |
| Characters per Line | 20 |
| Backlighting | LED |
| Background Colors | 3 |
| Control Keys | System keys |
| Configurable Keys | 0 |
| Alphanumeric Keyboard | No |
| Ethernet Ports | 2 × Ethernet |
| Supply Voltage | 12 V DC / 12–24 V DC / 24 V AC |
| Power Loss | Approx. 1.8 W (at 24 V DC) |
| Front Protection | IP65 |
| Operating Temperature | -20 °C to +55 °C (no condensation) |
| Storage Temperature | -40 °C to +70 °C |
| Operating Altitude | -1000 m to +2000 m |
| Housing Material | Plastic |
| Dimensions (W × H × D) | 128.2 × 86 × 38.7 mm |
| Weight | Approx. 220 g |
| Standards & Approvals | CE, UL, FM, KC, ABS (Marine) |
