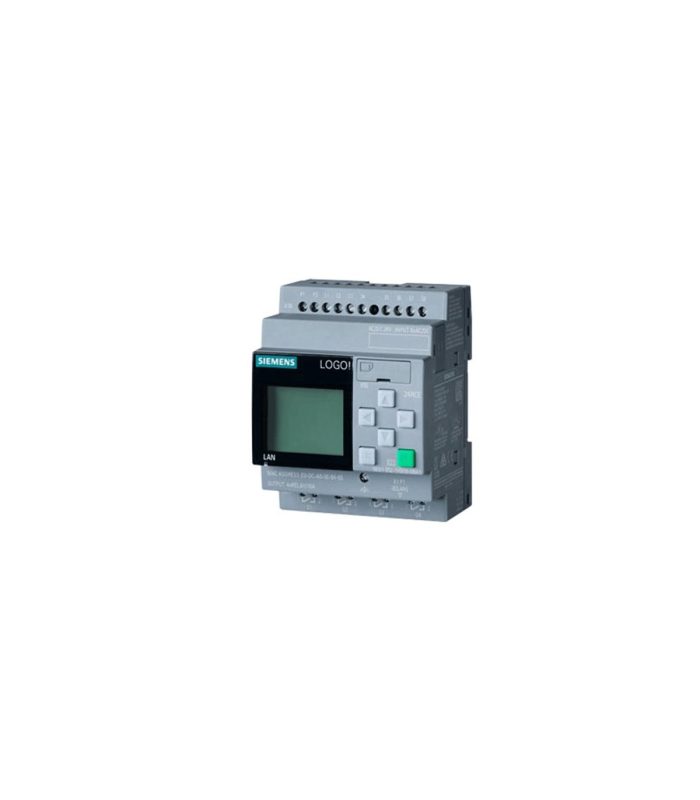

Siemens LOGO! 24CE Logic Module (6ED1052-1CC08-0BA1)
Siemens LOGO! 24CE Logic Module (6ED1052-1CC08-0BA1) is a compact PLC for low-voltage automation systems. Operating on 24 V DC, it provides 8 digital inputs (4 configurable as analog 0–10 V), 4 transistor outputs, and integrated Ethernet with web server, making it suitable for building automation and industrial control panels across the UAE.
The Siemens LOGO! 24CE Logic Module (6ED1052-1CC08-0BA1) is a compact programmable logic controller from the Siemens LOGO! PLC family, designed for low-voltage automation applications that require reliable control, compact installation, and integrated communication. Powered by 24 V DC, this module is widely used in industrial and building automation environments where efficient control and monitoring are essential.
The controller is equipped with 8 digital inputs, of which 4 inputs can be used in analog mode (0–10 V), allowing direct connection of sensors and signal devices without additional modules. It also features 4 digital transistor outputs with integrated electrical short-circuit protection (1 A), enabling safe and reliable switching of automation loads.
An integrated Ethernet interface and built-in web server allow browser-based monitoring, diagnostics, and visualization of automation processes. The LOGO! 24CE supports data logging, user-defined web pages, and cloud connectivity in LOGO! 8.3 basic units, enabling modern networked and remote automation solutions.
The module is fully compatible with LOGO! Soft Comfort V8.3 or higher and supports up to 400 function blocks, providing flexible programming and easy project migration from earlier LOGO! versions. Its compact DIN-rail design ensures fast installation and efficient use of space in control cabinets and OEM panels.
As a trusted supplier of Siemens automation solutions,
Bardia Control Systems
supplies original Siemens LOGO! PLC products with technical support and fast delivery across the UAE. Related components are available in our
Siemens Automation Technology
range.
For independent technical context on PLC-based automation systems, refer to the following industry article:
What Is a PLC and How Does It Work?
Technical Specifications
| Brand | Siemens |
| Product Family | LOGO! PLC |
| Model | LOGO! 24CE |
| Part Number | 6ED1052-1CC08-0BA1 |
| Product Type | Logic Module / Compact PLC |
| Display | Integrated display |
| Mounting Type | 35 mm DIN rail (4 spacing units wide) |
| Supply Voltage (DC) | 24 V DC |
| Permissible Voltage Range | 20.4 – 28.8 V DC |
| Digital Inputs | 8 DI (4 usable as analog 0–10 V) |
| Digital Outputs | 4 DO (Transistor) |
| Short-Circuit Protection | Yes; electrical (1 A) |
| Output Current | Max. 0.3 A (0–55 °C) |
| Memory Capacity | 400 function blocks |
| Communication Interface | Ethernet |
| Integrated Web Server | Yes |
| Data Logging | Yes |
| Time Switching Clocks | Max. 400; Power reserve 480 h |
| Operating Temperature | -20 °C to +55 °C (no condensation) |
| Storage Temperature | -40 °C to +70 °C |
| Operating Altitude | Up to +2000 m |
| Dimensions (W × H × D) | 71.5 × 90 × 60 mm |
| Standards & Approvals | CE, CSA, UL, FM, Marine |
| Standards Compliance | IEC 61131, VDE 0631 |
