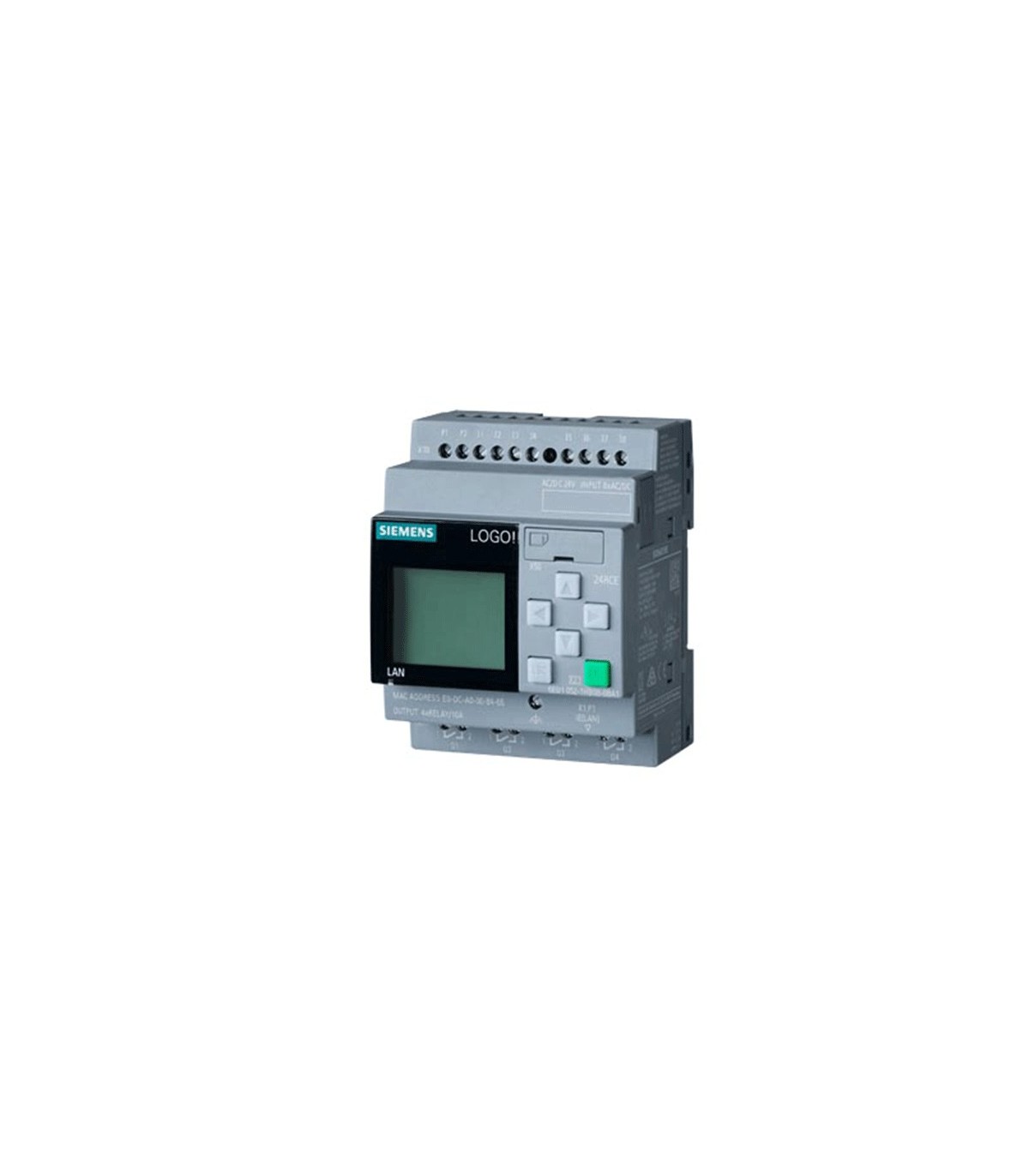

Siemens LOGO! 12/24RCE Logic Module (6ED1052-1MD08-0BA2)
Siemens LOGO! 12/24RCE Logic Module (6ED1052-1MD08-0BA2) is a compact PLC designed for low-voltage automation systems. Supporting 12/24V DC, it offers 8 digital inputs (4 configurable as analog 0–10 V), 4 relay outputs, and integrated Ethernet with web server, making it suitable for building automation and industrial control panels across the UAE.
Product Description
The Siemens LOGO! 12/24RCE (6ED1052-1MD08-0BA2) is a compact programmable logic controller from the Siemens LOGO! PLC family, designed for flexible low-voltage automation applications. With support for both 12 V and 24 V DC supply, this model is a strong fit for industrial and building automation environments where compact size, reliable switching, and network connectivity are required.
This logic module offers 8 digital inputs, with 4 channels configurable as analog inputs (0–10 V), enabling integration of common sensors and signals. It also includes 4 relay outputs for switching typical automation loads. The combination of digital and basic analog handling helps simplify panel design by reducing the need for additional I/O hardware in many small control applications.
The LOGO! 12/24RCE includes an integrated Ethernet interface and built-in web server, allowing browser-based monitoring and status visualization. It supports data logging and user-defined web pages, and enables modern connectivity features such as MQTT for IoT-oriented integration in compatible LOGO! generations—useful for connected automation and remote monitoring scenarios.
The module is compatible with LOGO! Soft Comfort V8.4 or higher and supports up to 400 function blocks, providing practical programming flexibility for typical automation logic. The compact DIN-rail form factor also supports fast installation in control cabinets and OEM panels.
As a trusted supplier of Siemens automation solutions,
Bardia Control Systems
provides original Siemens PLC products with technical support and UAE delivery. Explore related components under
Siemens Automation Technology
to build scalable control systems.
For independent background and practical context on PLC usage in automation projects, see:
What Is a PLC and How Does It Work?
Technical Specifications
| Brand | Siemens |
| Product Family | LOGO! PLC |
| Model | LOGO! 12/24RCE |
| Part Number | 6ED1052-1MD08-0BA2 |
| Product Type | Logic Module / Compact PLC |
| Display | Yes |
| Mounting Type | 35 mm DIN rail (4 spacing units wide) |
| Supply Voltage (DC) | 12 V DC / 24 V DC |
| Permissible Range (DC) | 10.8 – 28.8 V |
| Digital Inputs | 8 DI (4 configurable as analog 0–10 V) |
| Digital Outputs | 4 Relay outputs |
| Relay Switching Capacity (Resistive) | Max. 10 A |
| Relay Switching Capacity (Inductive) | Max. 3 A |
| Short-Circuit Protection | No (external fusing required) |
| Memory Capacity | 400 function blocks |
| Communication Interface | Ethernet |
| Integrated Web Server | Yes |
| Data Logging | Yes |
| Cloud / MQTT | Supported (LOGO! 8.4 basic units) |
| Time Switch Functions | Up to 400 clocks; 480 h power reserve |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Operating Altitude | Up to +2000 m |
| Dimensions (W × H × D) | 71.5 × 90 × 60 mm |
| Certifications | CE, UL, FM, Marine (available soon) |
| Standards Compliance | IEC 61131, VDE 0631 |
| Software Compatibility | LOGO! Soft Comfort V8.4 or higher |
| Memory Card | Standard microSD card |
