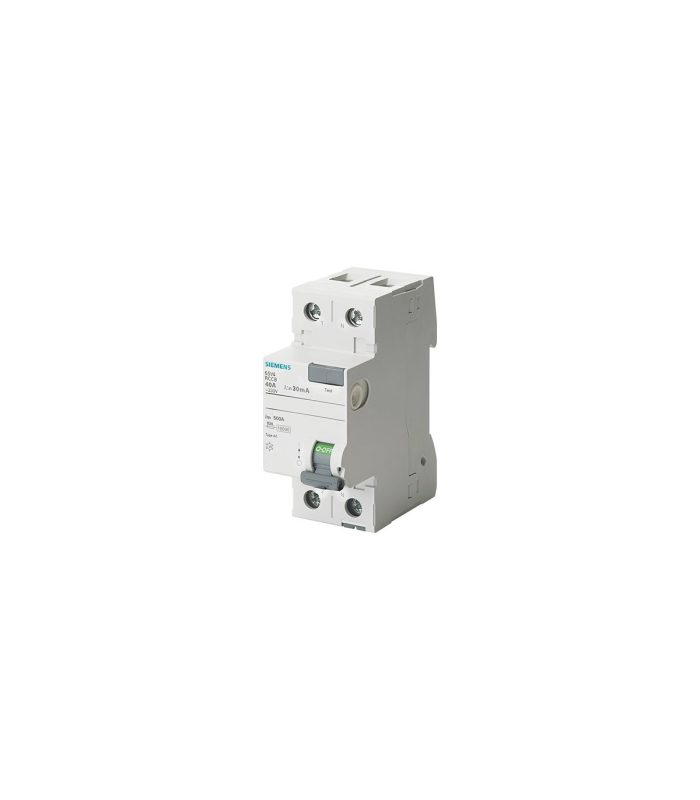

The Siemens SENTRON 5SV4311-0 RCCB is a 2-pole residual current operated circuit breaker designed for reliable protection against electric shock and leakage currents in low-voltage installations. With a rated current of 16 A, Type AC sensitivity, and 30 mA residual current rating, this device ensures dependable personnel and equipment protection in residential, commercial, and infrastructure environments. Engineered as part of the Siemens 5SV4 series, it is built for stability, fast trip response, and compliance with IEC 61008-1 standards.
This RCCB supports a rated operational voltage of 230 V AC at 50 Hz and provides a short-circuit current rating of 10 kA when used with a series fuse up to 63 A. According to Siemens’ specifications, the unit offers a mechanical service life of 10,000 operating cycles, demonstrating robust durability in distribution boards and protective assemblies. The device includes IP20 protection (with connected conductors) and incorporates silicon-free construction for compatibility with sensitive industrial and residential environments.
The Siemens 5SV4311-0 allows installation of supplementary accessories and supports conductor cross-sections up to 35 mm², ensuring secure and flexible wiring. Its compact 2-module width and DIN-rail mounting simplify integration into standardized electrical panels. For related RCCB models and protective devices, visit our electrical protection equipment section. For official Siemens documentation, refer to the Siemens Industry Mall.
Technical Specifications – Siemens 5SV4311-0 RCCB
| Brand | SENTRON |
| Product Type | RCCB (Residual Current Circuit Breaker) |
| Series | 5SV4 |
| Design | Instantaneous |
| Number of Poles | 2 |
| Rated Current (In) | 16 A |
| Residual Current Sensitivity | 30 mA |
| Type | AC |
| Rated Voltage | 230 V AC |
| Supply Voltage for Testing (Min) | 195 V |
| Frequency | 50 Hz |
| Short-Circuit Current Rating | 10 kA |
| Max Series Fuse | 63 A |
| Switching Capacity (IEC 61008-1) | 0.5 kA |
| Mechanical Service Life | 10,000 cycles |
| Overvoltage Category | III |
| Power Loss per Pole | 0.4 W |
| Maximum Power Loss | 0.8 W |
| Silicon-Free | Yes |
| Supplementary Devices Installable | Yes |
| Conductor Cross-Section (Solid) | 0.75 – 35 mm² |
| Conductor Cross-Section (Stranded) | 0.75 – 35 mm² |
| Tightening Torque | 2.5 – 3 N·m |
| Supply Position | Top or bottom |
| Height | 90 mm |
| Width | 36 mm |
| Depth | 70 mm |
| Installation Depth | 70 mm |
| Modular Width Units | 2 |
| Mounting | DIN-rail (REG) |
| Mounting Position | Any |
| Grid Spacing | 60 mm |
| Net Weight | 202 g |
| Operating Temperature | -25 °C to +45 °C |
| Storage Temperature | ≥ -40 °C |
| Environmental Test Cycles | 28 (IEC 60068-2-30) |
| EPD Available | Yes |
| Global Warming Potential (Total) | 8.73 kg CO₂-eq |
| GWP Manufacturing | 1.32 kg CO₂-eq |
| GWP Operation | 7.39 kg CO₂-eq |
| GWP End of Life | 0.017 kg CO₂-eq |
Key Features
- 2-pole RCCB with Type AC sensitivity and 30 mA leakage protection
- Rated current 16 A with 230 V AC operation
- High mechanical endurance: 10,000 operating cycles
- Short-circuit current rating 10 kA with 63 A series fuse
- Compact 2-module width for DIN-rail systems
- Wide conductor cross-section support up to 35 mm²
- Silicon-free construction and IP20 protection
For engineering support, procurement options, or integration guidance, our technical team is ready to assist with Siemens SENTRON protection devices.
