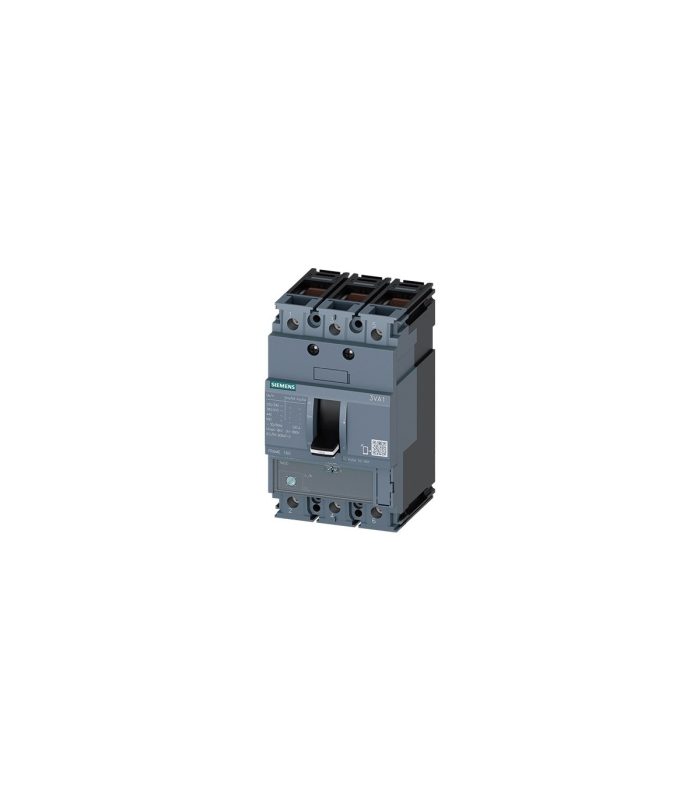

The Siemens SENTRON 3VA1110-3EE36-0AA0 molded case circuit breaker is a 3-pole line protection device designed for dependable overcurrent and short-circuit protection in industrial low-voltage distribution systems. Featuring frame size 160, breaking capacity class N, and Icu of 25 kA at 415 V AC, this MCCB delivers consistent performance in demanding electrical environments. Its TM220 thermal-magnetic release provides overload protection (Ir 70–100 A) and fixed short-circuit protection at 10× In, ensuring stable protection across operational conditions.
According to the Siemens technical data, the 3VA1110-3EE36-0AA0 supports rated operational voltages up to 690 V AC and 500 V DC, with an insulation voltage of 800 V. It offers a mechanical service life of 20,000 operating cycles and electrical endurance of up to 9,000 cycles at 380/415 V AC. With a front terminal design, box terminals on both sides, and compatibility with conductor sizes up to 70 mm² (stranded), this MCCB is well suited for structured panel installations in heavy-duty electrical networks.
The breaker supports optional motor-drive accessories and includes IP40 protection on the front. Operational temperature ranges from -25°C to +70°C, making it suitable for industrial, utility, and commercial applications. For additional circuit protection devices, visit our industrial low-voltage protection category. Additional technical documents and 3D models are available on the Siemens Industry Mall.
Technical Specifications – Siemens 3VA1110-3EE36-0AA0
| Brand | SENTRON |
| Product Type | Molded case circuit breaker |
| Series | 3VA1 |
| Design | Line protection |
| Overcurrent Release Type | TM220 (LI) |
| Number of Poles | 3 |
| Rated Current (In) | 100 A |
| Adjustable Overload Protection (Ir) | 70–100 A |
| Short-Circuit Protection (Ii) | 10 × In (1,000 A fixed) |
| Insulation Voltage | 800 V |
| Operating Voltage (AC) | 690 V |
| Operating Voltage (DC) | 500 V |
| Maximum Power Loss | 25 W |
| Mechanical Service Life | 20,000 cycles |
| Electrical Endurance (380/415V AC) | 9,000 cycles |
| Electrical Endurance (690V AC) | 6,300 cycles |
| Breaking Capacity (Icu) | 25 kA at 415 V |
| Icu at 240 V | 36 kA |
| Icu at 440 V | 16 kA |
| Icu at 500 V | 7 kA |
| Icu at 690 V | 7 kA |
| Operating Short-Circuit Breaking Capacity (Ics) | Up to 25 kA (per voltage table) |
| Short-Circuit Making Capacity (Icm) | 52.5 kA at 415 V |
| Icm at 240 V | 75.6 kA |
| Icm at 440 V | 32 kA |
| Icm at 500 V | 11.9 kA |
| Icm at 690 V | 11.9 kA |
| Net Weight | 999 g |
| Conductor Size (Stranded) | 1× (1.5 – 70 mm²) |
| Terminals | Front terminal, box terminal both sides |
| Top Terminal Surface | Silver |
| Bottom Terminal Surface | Tin |
| Optional Motor Drive | Yes |
| Protection Class (Front) | IP40 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| EPD Available | Yes |
| Global Warming Potential (Total) | 190 kg CO₂-eq |
| GWP Manufacturing | 4.67 kg CO₂-eq |
| GWP Operation | 186 kg CO₂-eq |
| GWP End of Life | -0.826 kg CO₂-eq |
Key Features
- 3-pole MCCB with 100 A rated current and adjustable thermal protection
- Breaking capacity class N, 25 kA at 415 V AC
- Wide operating voltage range up to 690 V AC and 500 V DC
- 20,000 mechanical cycles and high electrical endurance
- Front-mounted terminals with conductor support up to 70 mm²
- IP40 front protection suitable for industrial panels
- Optional motor-drive accessory supported
