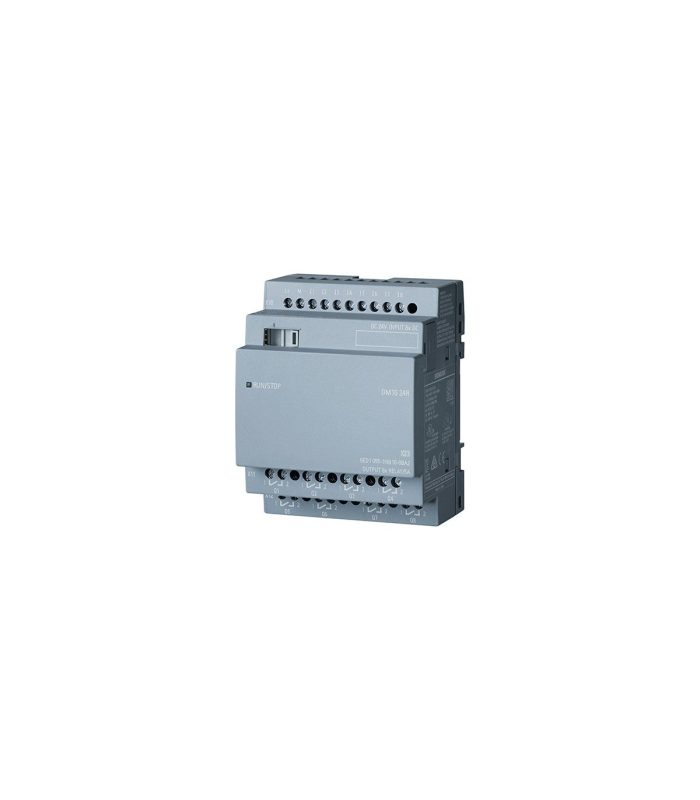

The Siemens LOGO! DM16 230R Expansion Module (6ED1055-1FB10-0BA2) is designed to expand the digital input and output capacity of Siemens LOGO! 8 basic units in automation systems operating directly on 115 V or 230 V AC/DC. This expansion module is well suited for applications where mains-voltage signal processing and relay-based switching are required without additional interface components.
The module offers 8 digital inputs compatible with AC and DC signals, along with 8 relay outputs for controlling high-voltage loads. The relay contacts support switching capacities of up to 5 A for resistive loads and 3 A for inductive loads, allowing direct control of lighting circuits, contactors, heaters, and industrial actuators.
Designed for seamless integration with LOGO! 8 controllers, the DM16 230R enables synchronized control logic and reliable signal handling across expanded automation architectures. Its compact DIN-rail form factor allows efficient use of space in control cabinets, making it suitable for both OEM panels and retrofit installations.
As a trusted supplier of Siemens automation solutions,
Bardia Control Systems
supplies original Siemens LOGO! expansion modules with technical support and fast delivery across the UAE. Additional compatible components are available in our
Siemens Automation Technology
range.
For independent technical background on PLC-based automation systems and relay I/O expansion concepts, refer to the following industry article:
What Is a PLC and How Does It Work?
Technical Specifications
| Brand | Siemens |
| Product Family | LOGO! 8 Expansion Modules |
| Model | LOGO! DM16 230R |
| Part Number | 6ED1055-1FB10-0BA2 |
| Product Type | Digital I/O Expansion Module |
| Mounting Type | 35 mm DIN rail, 4 spacing units wide |
| Supply Voltage (AC) | 115 V / 230 V AC |
| Supply Voltage (DC) | 115 V / 230 V DC |
| Permissible Voltage Range (DC) | 100 – 253 V DC |
| Line Frequency | 47 – 63 Hz |
| Digital Inputs | 8 DI (AC/DC) |
| Input Voltage “0” | < 40 V AC / < 30 V DC |
| Input Voltage “1” | > 79 V AC / > 79 V DC |
| Input Current (Signal 0) | Max. 0.06 mA |
| Input Current (Signal 1) | Typ. 0.13 mA |
| Input Delay (0 → 1) | Max. 40 ms |
| Input Delay (1 → 0) | Max. 75 ms |
| Digital Outputs | 8 DO (Relay) |
| Relay Output Current | 5 A (resistive), 3 A (inductive) |
| Minimum Load Current | 100 mA |
| Short-Circuit Protection | No |
| Parallel Switching | No |
| Switching Frequency (Resistive) | Max. 2 Hz |
| Switching Frequency (Inductive) | Max. 0.5 Hz |
| Mechanical Switching Frequency | Max. 10 Hz |
| Degree of Protection | IP20 |
| Operating Temperature | 0 °C to +55 °C (ES03+: -20 °C) |
| Dimensions (W × H × D) | 71.5 × 90 × 58 mm |
| Standards & Approvals | CE, CSA, UL, FM, Marine |
| Standards Compliance | IEC 61131, VDE 0631 |
