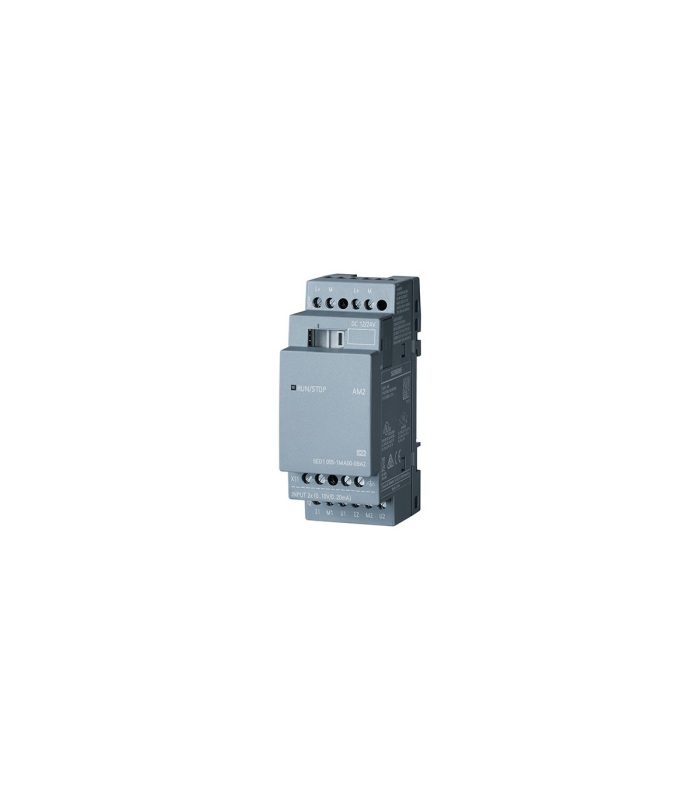

The Siemens LOGO! AM2 Analog Expansion Module (6ED1055-1MA00-0BA2) is designed to extend the analog signal processing capabilities of Siemens LOGO! 8 basic units. Powered by 12 V or 24 V DC, this compact expansion module enables accurate acquisition of analog measurement values in automation systems where voltage and current signals are required.
The module provides 2 analog input channels that support both voltage (0–10 V) and current (0–20 mA or 4–20 mA) input ranges. This flexibility allows direct connection of common field devices such as pressure sensors, flow transmitters, level sensors, and industrial signal converters without additional interface modules.
Designed for seamless integration with LOGO! 8 controllers, the LOGO! AM2 ensures reliable analog signal acquisition and stable operation in compact automation panels. Its DIN-rail mounting design supports efficient use of space and straightforward system expansion in both new installations and retrofit projects.
As a trusted supplier of Siemens automation solutions,
Bardia Control Systems
supplies original Siemens LOGO! expansion modules with technical support and fast delivery across the UAE. Additional compatible controllers and accessories are available in our
Siemens Automation Technology
range.
For independent technical background on PLC-based analog signal processing, refer to the following industry article:
What Is a PLC and How Does It Work?
Technical Specifications
| Brand | Siemens |
| Product Family | LOGO! 8 Expansion Modules |
| Model | LOGO! AM2 |
| Part Number | 6ED1055-1MA00-0BA2 |
| Product Type | Analog Input Expansion Module |
| Mounting Type | 35 mm DIN rail, 2 spacing units wide |
| Supply Voltage (DC) | 12 V / 24 V DC |
| Permissible Voltage Range | 10.8 – 28.8 V DC |
| Current Consumption | Typ. 30 mA |
| Analog Inputs | 2 AI |
| Input Signal Type | Voltage / Current |
| Voltage Input Range | 0 – 10 V |
| Current Input Range | 0 – 20 mA or 4 – 20 mA |
| Resistance Thermometer (Pt100) | Not supported |
| EMC Compliance | EN 55 011, Class B |
| Degree of Protection | IP20 |
| Operating Temperature | 0 °C to +55 °C (ES03+: -20 °C) |
| Dimensions (W × H × D) | 35.5 × 90 × 58 mm |
| Standards & Approvals | CE, CSA, UL, FM, Marine |
| Standards Compliance | IEC 61131, VDE 0631 |
