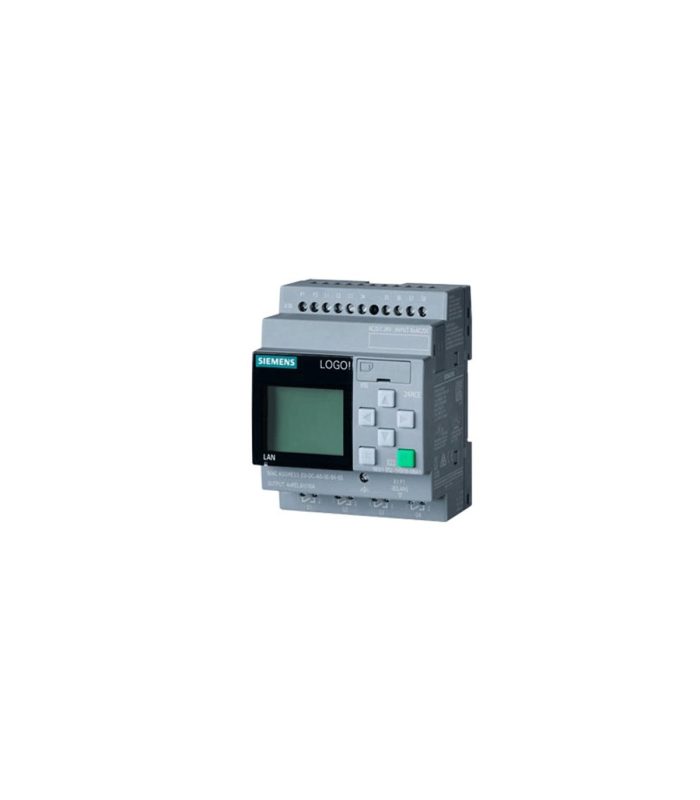

The Siemens LOGO! 24RCE Logic Module (6ED1052-1HB08-0BA1) is a compact programmable logic controller engineered for small-scale and distributed automation applications. As part of the Siemens LOGO! PLC family, this module delivers reliable control performance in industrial and building automation environments where space efficiency and long-term stability are required.
Operating on a 24V AC/DC power supply, the LOGO! 24RCE provides 8 digital inputs and 4 relay outputs, enabling direct switching of loads such as motors, contactors, pumps, valves, and lighting circuits. Relay outputs make this model suitable for control panels that demand flexible and robust output handling across a wide range of automation tasks.
An integrated Ethernet interface with a built-in web server allows operators and engineers to monitor system status, access diagnostics, and visualize basic process data through standard web browsers. This supports modern automation needs including remote access, basic data logging, and network-based control without additional communication hardware.
The controller is fully compatible with LOGO! Soft Comfort V8.3 or higher, offering intuitive programming, simulation, and commissioning. With support for up to 400 function blocks and modular expansion, the LOGO! 24RCE adapts to evolving project requirements while maintaining dependable performance over its lifecycle.
Typical applications include building management systems (BMS), HVAC control, industrial control panels, energy management systems, and OEM automation solutions across Dubai and the UAE.
As a trusted supplier of Siemens automation solutions,
Bardia Control Systems provides original Siemens LOGO! PLC products with technical support and fast delivery. Explore related options in our
Siemens automation technology range to build scalable automation systems.
For independent technical background and implementation context, see:
What Is a PLC and How Does It Work?
Technical Specifications
| Brand | Siemens |
| Product Family | LOGO! PLC |
| Model | LOGO! 24RCE |
| Part Number | 6ED1052-1HB08-0BA1 |
| Product Type | Logic Module / Compact PLC |
| Display | Integrated display |
| Mounting Type | 35 mm DIN rail (4 spacing units wide) |
| Supply Voltage | 24 V AC / DC |
| Line Frequency | 47 – 63 Hz |
| Digital Inputs | 8 DI |
| Digital Outputs | 4 Relay outputs |
| Relay Switching Capacity (Resistive) | Max. 10 A |
| Relay Switching Capacity (Inductive) | Max. 3 A |
| Memory Capacity | 400 function blocks |
| Communication Interface | Ethernet |
| Integrated Web Server | Yes |
| Data Logging | Yes |
| Cloud Connectivity | Supported (LOGO! 8.3+) |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Operating Altitude | Up to +2000 m |
| Dimensions (W × H × D) | 71.5 × 90 × 60 mm |
| Certifications | CE, UL, CSA, FM, Marine |
| Standards Compliance | IEC 61131, VDE 0631 |
| Software Compatibility | LOGO! Soft Comfort V8.3 or higher |
