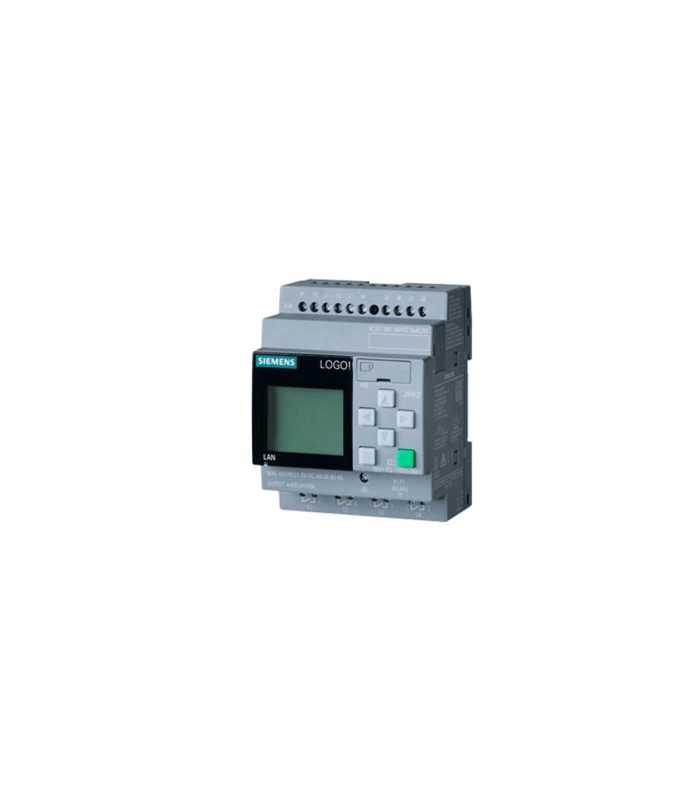

The Siemens LOGO! 230RCE Logic Module (6ED1052-1FB08-0BA2) is a compact programmable logic controller from the Siemens LOGO! PLC family, developed for automation applications that require direct operation on 115 V or 230 V AC/DC power supply. This makes the module particularly suitable for control systems where mains voltage is used without additional power supplies.
The controller provides 8 digital inputs and 4 relay outputs, allowing reliable switching of both resistive and inductive loads. The relay outputs support switching currents up to 10 A for resistive loads and 3 A for inductive loads, enabling direct control of contactors, pumps, lighting circuits, and other industrial devices.
An integrated Ethernet interface and built-in web server enable browser-based monitoring, diagnostics, and visualization of automation processes without external communication modules. The LOGO! 230RCE supports data logging, user-defined web pages, and cloud connectivity, including MQTT communication in LOGO! 8.4 basic units.
The module is compatible with LOGO! Soft Comfort V8.4 or higher and supports up to 400 function blocks, allowing flexible logic design and execution of older LOGO projects. A standard microSD card is used for program storage and data handling, supporting efficient commissioning and maintenance.
As a trusted supplier of Siemens automation solutions,
Bardia Control Systems
supplies original Siemens LOGO! PLC products with technical support and fast delivery across the UAE. Related automation components are available in our
Siemens Automation Technology
range.
For independent technical context on PLC-based automation systems, refer to the following industry article:
What Is a PLC and How Does It Work?
Technical Specifications
| Brand | Siemens |
| Product Family | LOGO! PLC |
| Model | LOGO! 230RCE |
| Part Number | 6ED1052-1FB08-0BA2 |
| Product Type | Logic Module / Compact PLC |
| Display | Integrated display |
| Mounting Type | 35 mm DIN rail (4 spacing units wide) |
| Supply Voltage (AC) | 115 V / 230 V AC (240 V AC) |
| Supply Voltage (DC) | 115 V / 230 V DC (240 V DC) |
| Permissible Voltage Range (DC) | 100 – 253 V DC |
| Line Frequency | 47 – 63 Hz |
| Digital Inputs | 8 DI |
| Digital Outputs | 4 DO (Relay) |
| Short-Circuit Protection | No; external fusing required |
| Relay Switching Capacity (Resistive) | Max. 10 A |
| Relay Switching Capacity (Inductive) | Max. 3 A |
| Memory Capacity | 400 function blocks |
| Communication Interface | Ethernet |
| Integrated Web Server | Yes |
| Data Logging | Yes |
| Time Switching Clocks | Max. 400; Power reserve 480 h |
| Operating Temperature | -20 °C to +55 °C (no condensation) |
| Storage Temperature | -40 °C to +70 °C |
| Operating Altitude | Up to +2000 m |
| Dimensions (W × H × D) | 71.5 × 90 × 60 mm |
| Standards & Approvals | CE, UL, FM, Marine (in preparation) |
| Standards Compliance | IEC 61131, VDE 0631 |
